Cashbox

Spécification Pilotes
Détails Paramètre

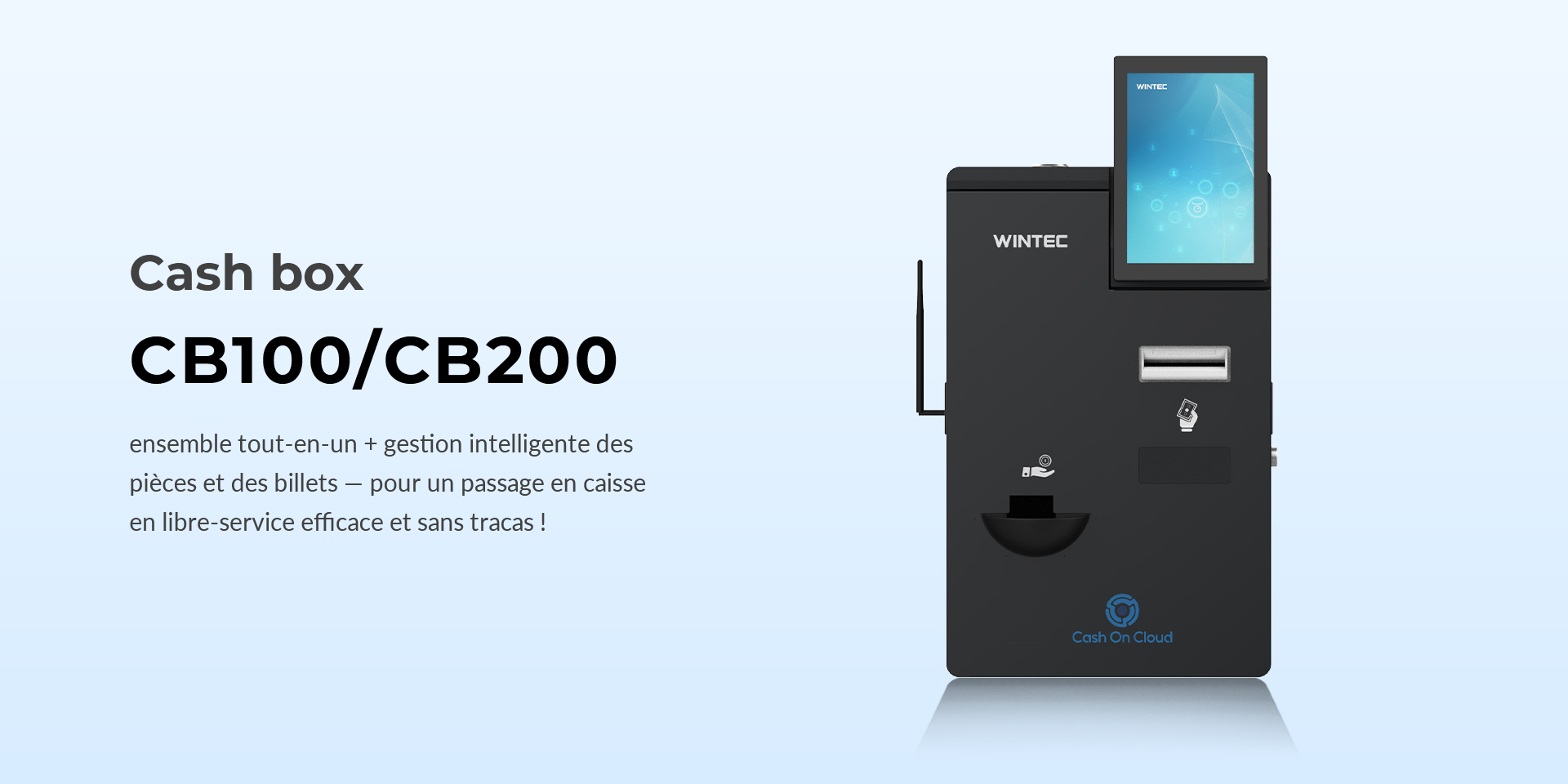

图层 1.jpg

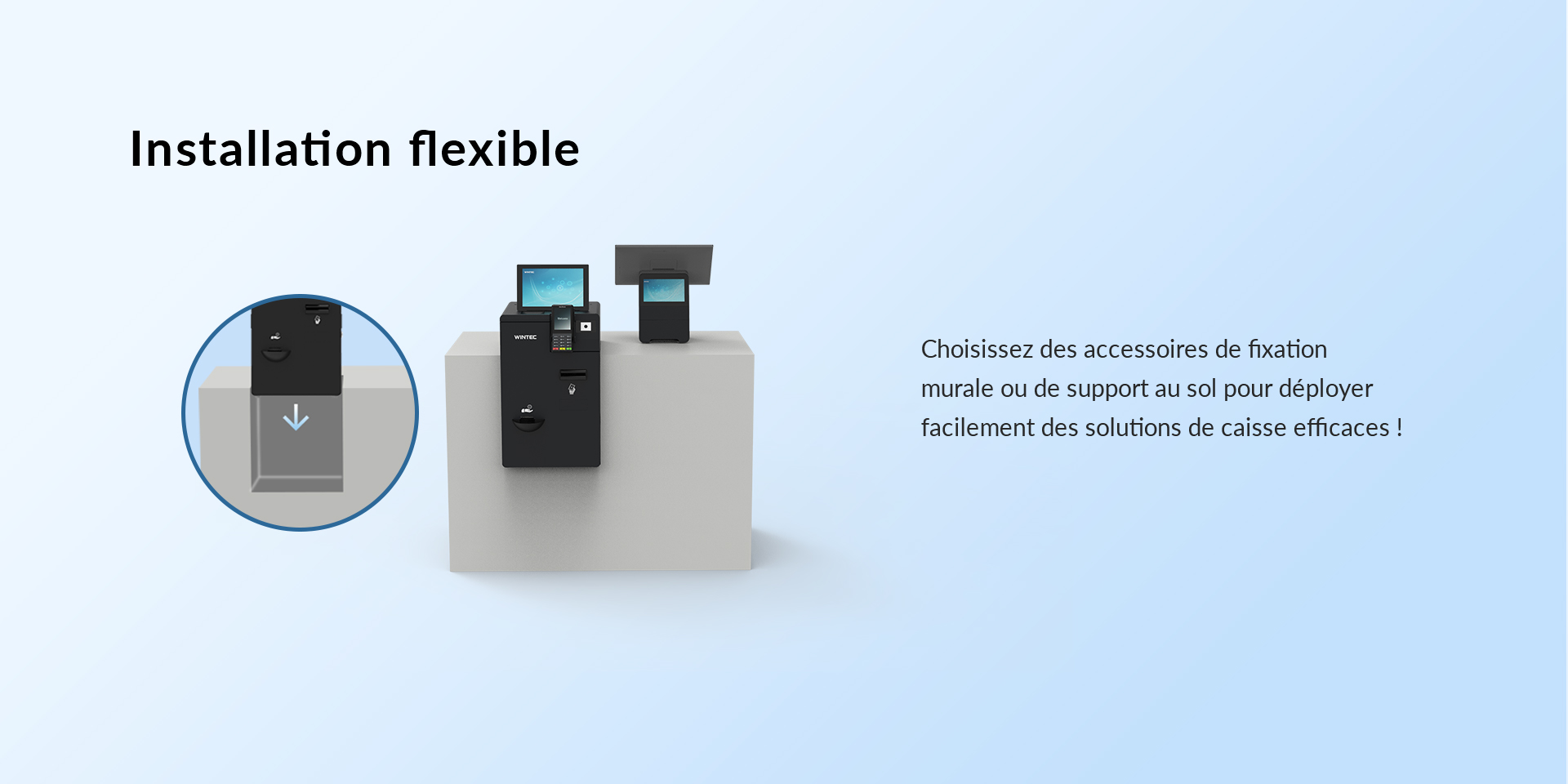

图层 2.jpg

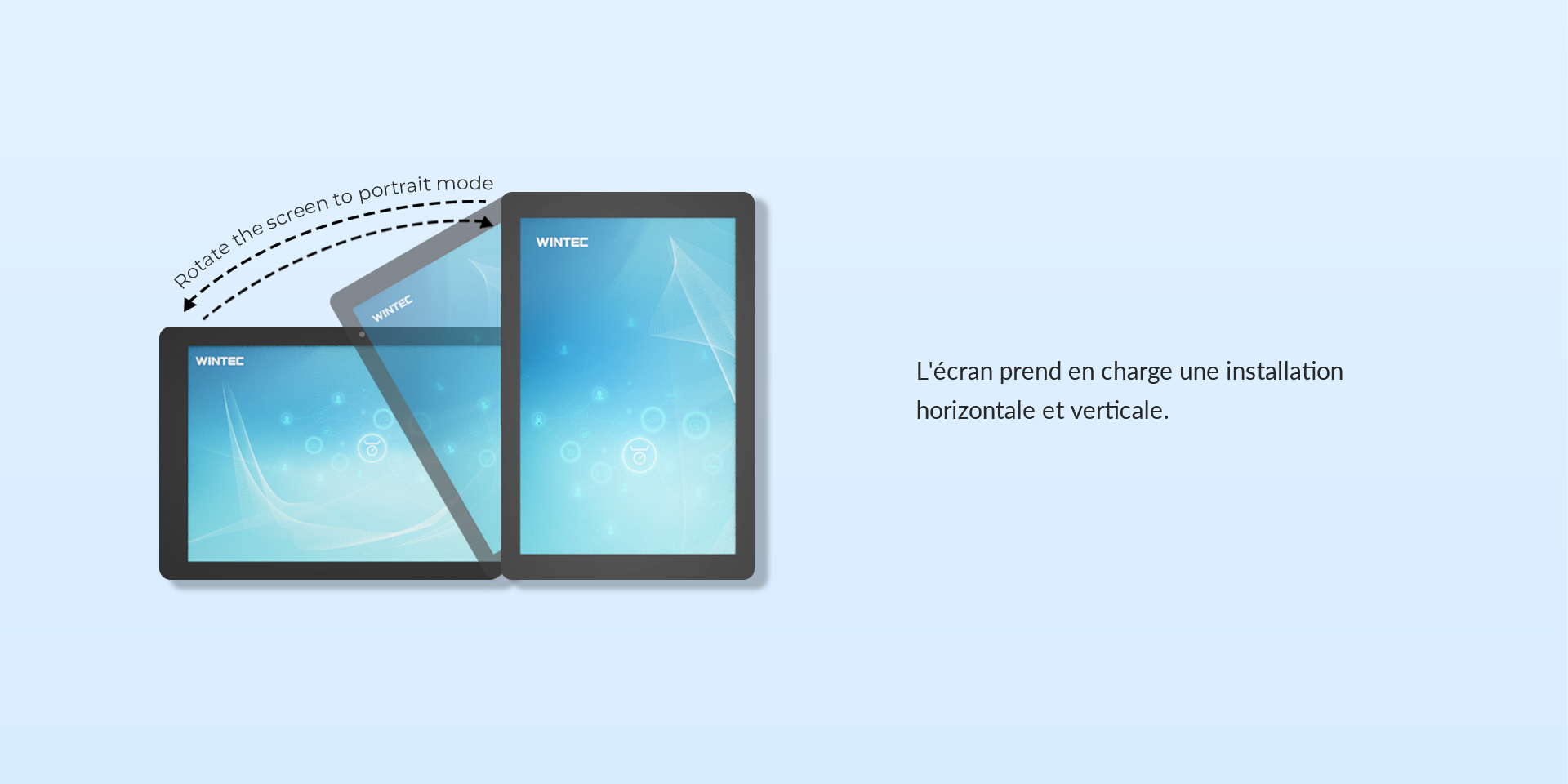

图层 3.jpg

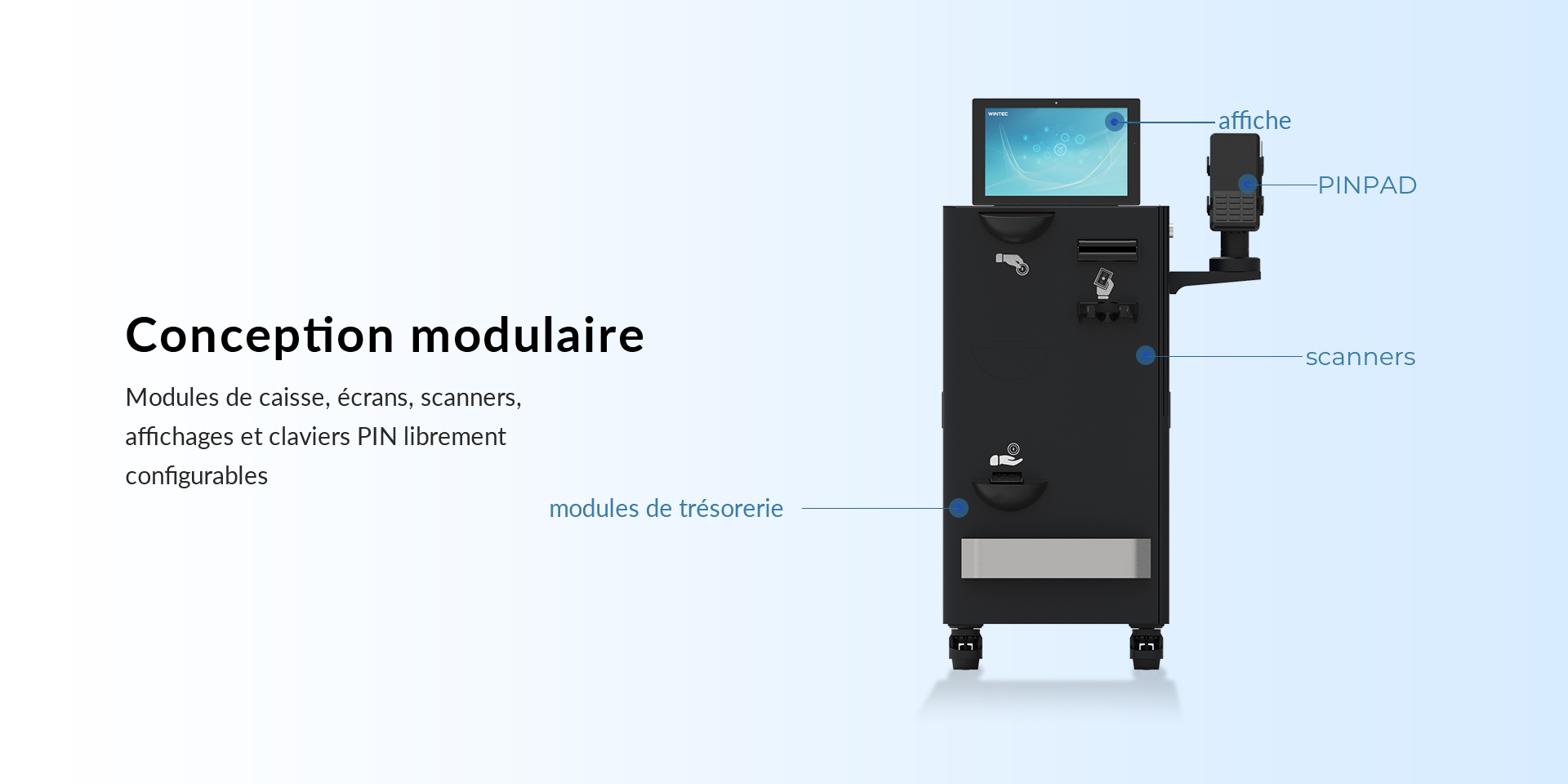

图层 4.jpg

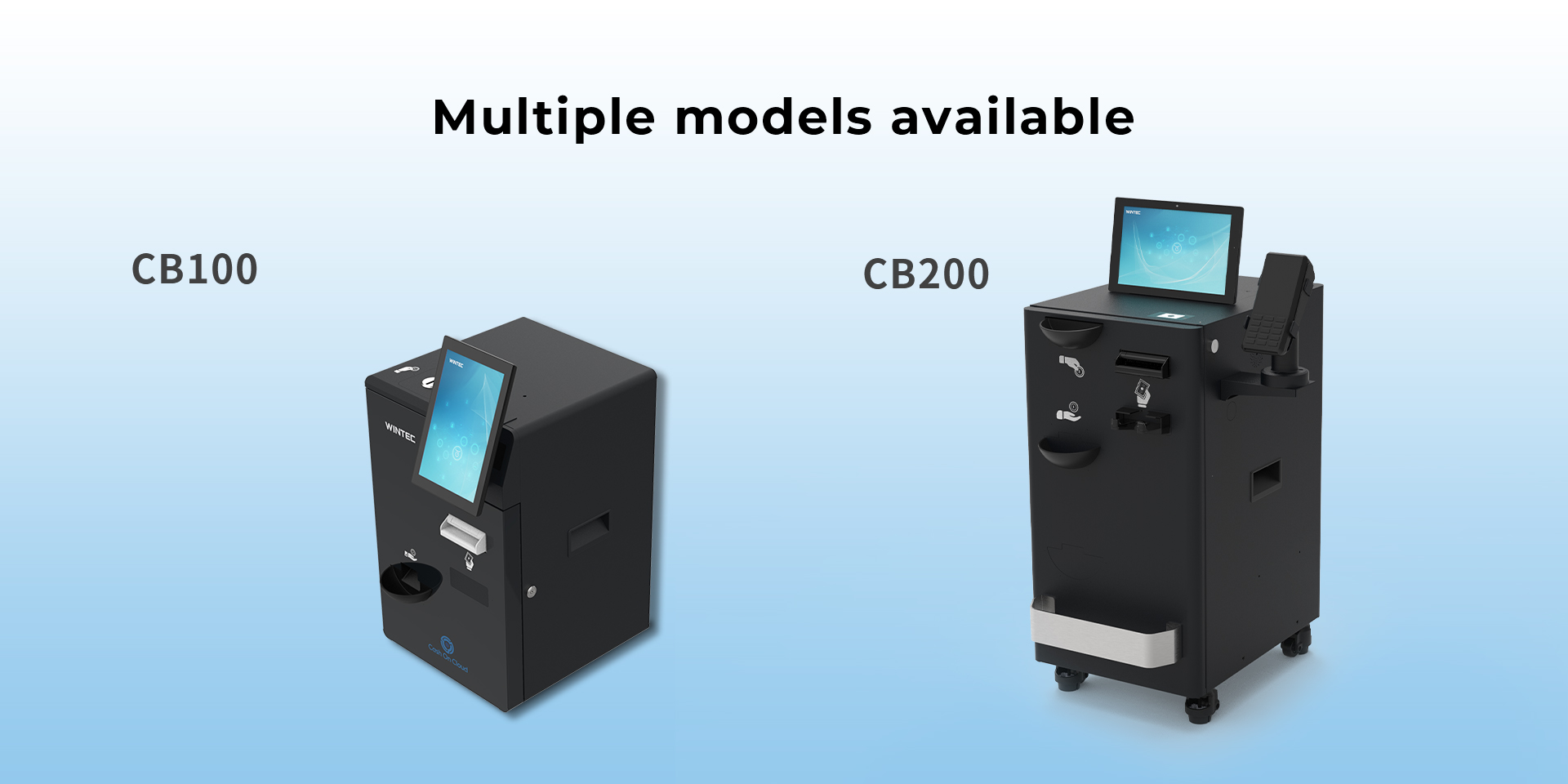

图层 5.jpg

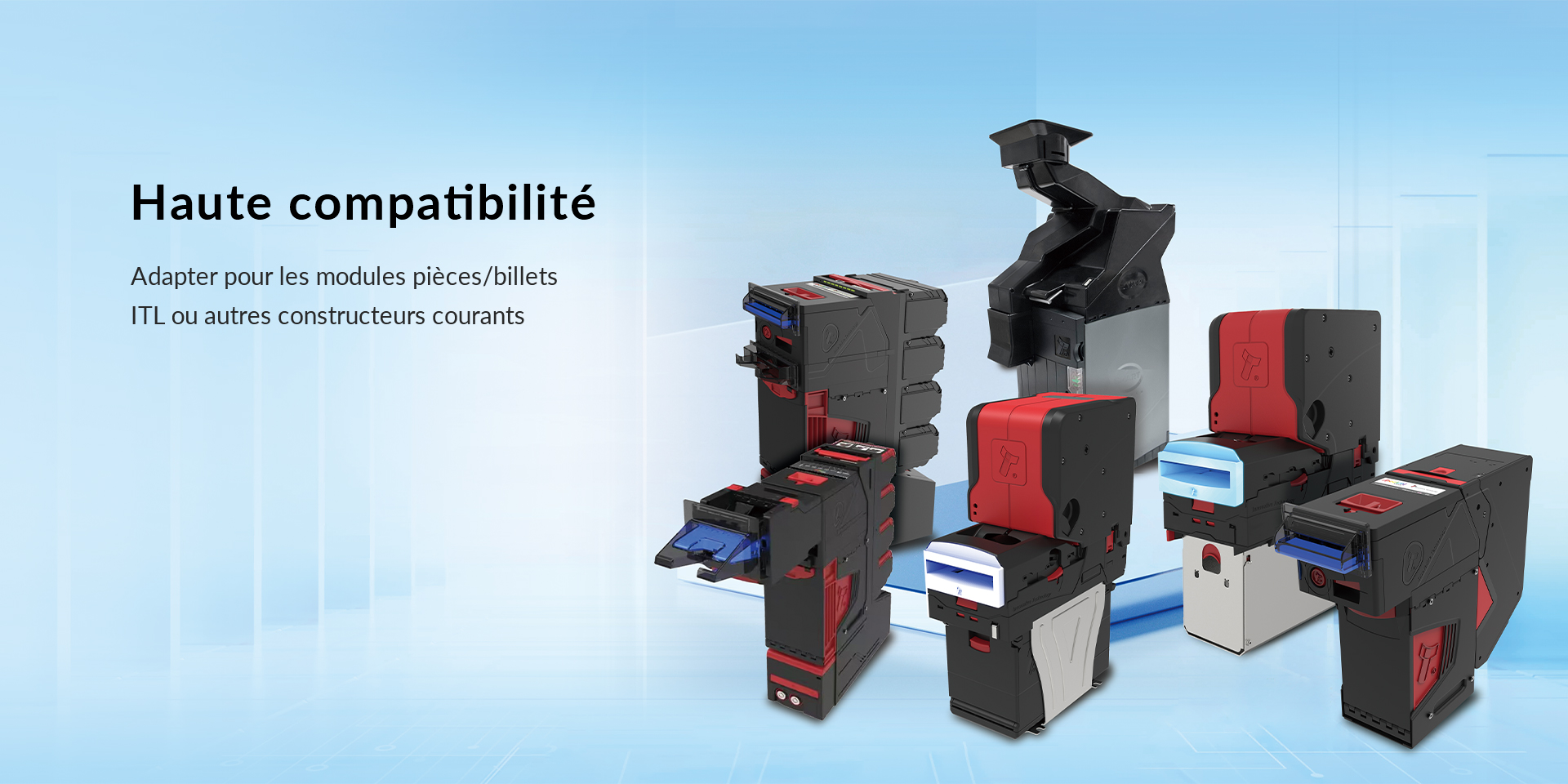

图层 6.jpg

图层 7.jpg

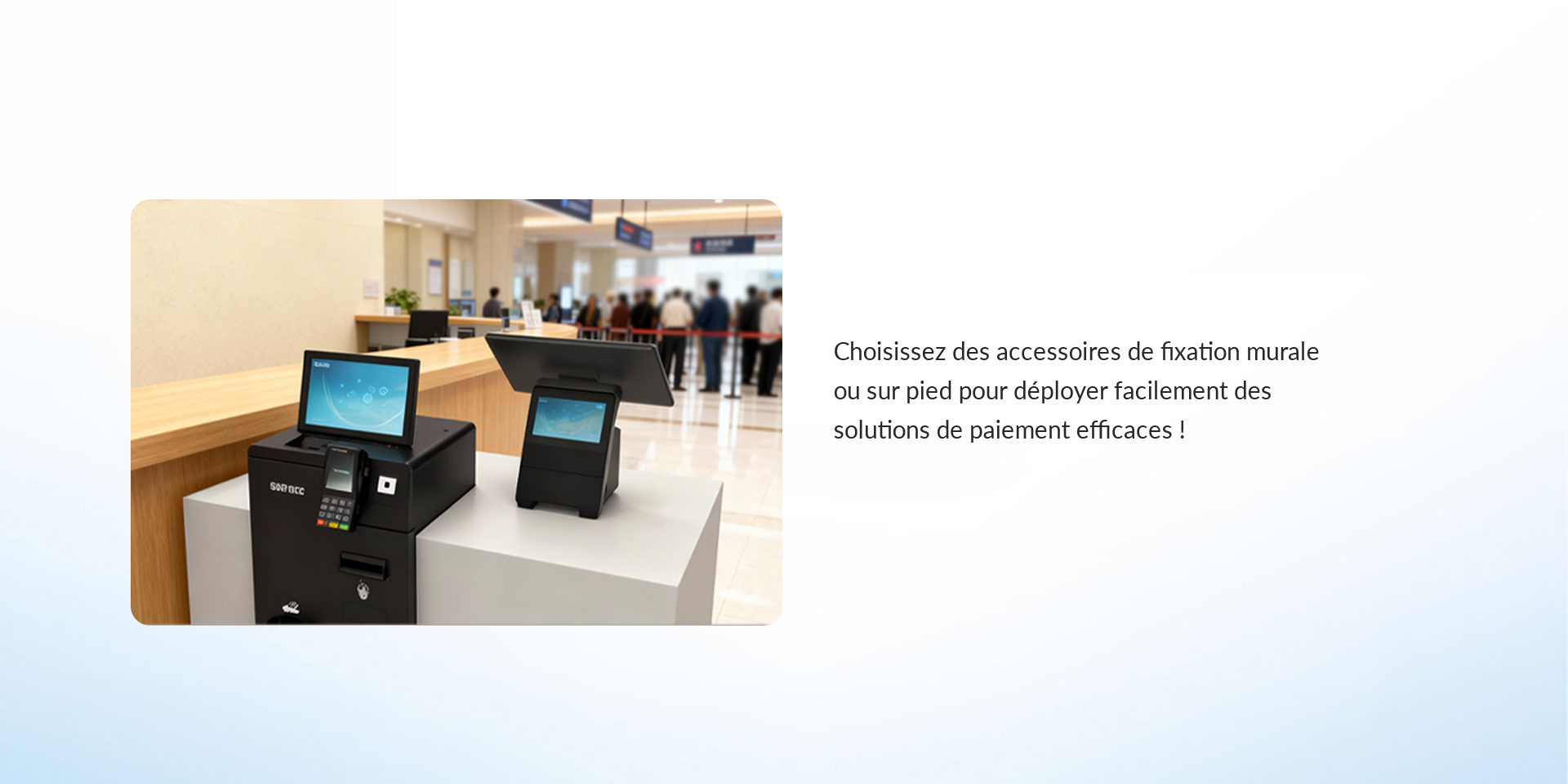

图层 8.jpg


périphérique
ModelAndroidWindows
CPURK3568 Quad Core A55, 2.0GHzN95, 4 cores, 3.4GHz
i3-1235U, 6 cores 2.5GHz, 4.4GHz (Turbo)
i5-1235U, 10 cores 2.5GHz, 4.4GHz (Turbo)
Memory4GB4GB, up to 32GB
Storage32GB128GB, up to 512GB
Display10.1" LCD, 1280*800 (PCAP)10.1" LCD, 1280*800 (PCAP)
Interfaces4*USB, 2*RS232(2*RJ48), 1*RJ45, 1*DK, 1*24V in, 1*HDMI4*USB, 2*RS232(2*RJ48), 1*RJ45, 1*DK, 1*24V in, 1*HDMI
Speaker1*5W
2*5W		1*5W
2*5W
Ethernet10/100/1000M10/100/1000M
WiFi&BT802.11 b/g/n/ac802.11 b/g/n/ac+BT4.0 (optional)
OSAndroid 11Win10/11, Linux
Power AdaptorAC input 100~240V, 50-60Hz
DC Output 24V/2.5A		AC input 100~240V, 50-60Hz
DC Output 24V/2.5A
DimensionCB100: 350*427*677 (mm)CB100: 350*427*677 (mm)
TemperatureWorking temperature: 0-40℃Working temperature: 0-40℃
HumidityWorking humidity: 10% to 90%,
without condensation		Working humidity: 10% to 90%,
without condensation
